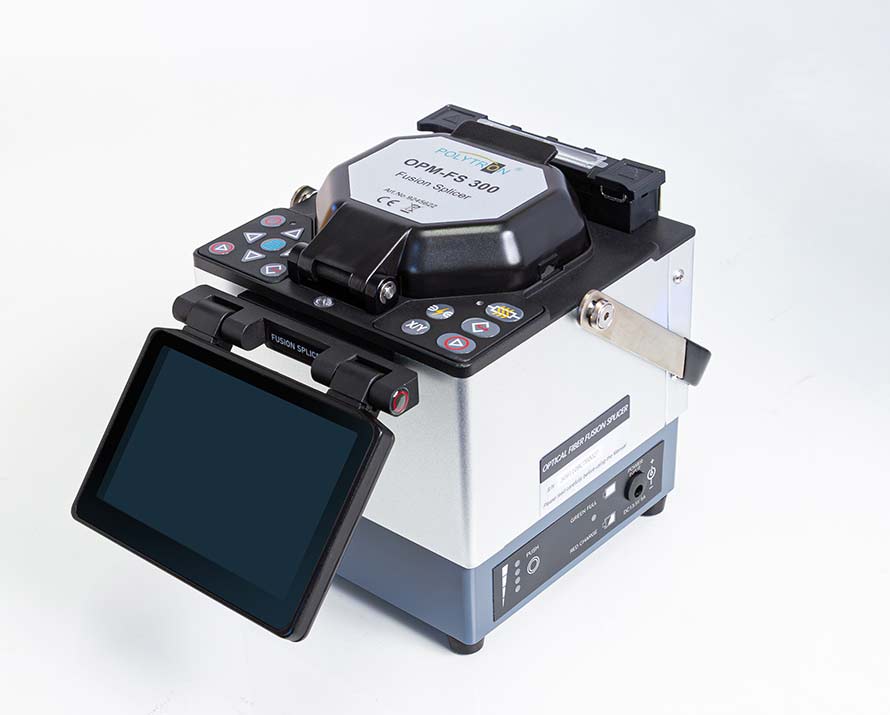

Optical fibre fusion splicer OPM-FS 300



The OPM-FS 300 is an automatic 3 axis fibre optic splicing device with special precision positioning technology.

Due to the sturdy and reliable design the device is perfect in field operation. Default programs enable a fast operation using common fibre optics.

The perfect quality of the splice connection is given by a test of the fibre angle and a terminal tensile test.

The whole splicing process takes 9 sec. Afterwards, the theoretical attenuation will be identified.

Included in delivery

  • OPM-FS 300
  • Transport box, usable as installation aid
  • cleaning brush
  • tweezer
  • replacement electrode
  • fibre stripper
  • fibre cleaver
  • carrying strap
  • power supply
  • cooling bracket
  • user manual on CD
  • USB cable (for software updates)

Typ / Type
OPM-FS300
Artikel-Nr. / Article no.
9245622
Faserarten / Applicable fibres
SM, MM, DS, NZDS
Freie Faserlänge / Fibre cleaved length
8 – 16 mm (Coating diameter 250 µm)
Faserdurchmesser / Fibre diameter
Cladding diameter 80 – 150 µm
coating diameter 100 – 1000 µm
Fibre count
single
Ausrichtungsmethode / Fibre alligning method
Core alligning, clad alligning, manual alligning
Spleißdämpfung Ø / Splice loss average
0,02 dB (SM); 0,01 dB (MM); 0,04 dB (DS);
0,04 dB (NZDS)
Spleißzeit / Splice time
Typ. 9 s (standard SM fibre)
Spleißprogramme / Splicing programs
53 (template), 40 (user)
Speicher für Prüfergebnisse / Storage for splice result
4000
Glasfaserabbild Vergrößerung / Fibre image magnification
300x ; 150x (X and Y view)
Zugkraft Test / Tension test
2 N
Batterie Kapazität / Battery capacity
typ. 160 (splice and heat)
Monitor
5,7“ TFT color
Temperaturbereich / Temperature range
-10°...50° C
Stromversorgung / Power supply
100-240 VAC / Li-Battery: 8000 mAh
Maße (L x B x H) / Dimensions (L x W x H)
150 x 150 x 150 mm
Gewicht / Weight
2,7 kg
