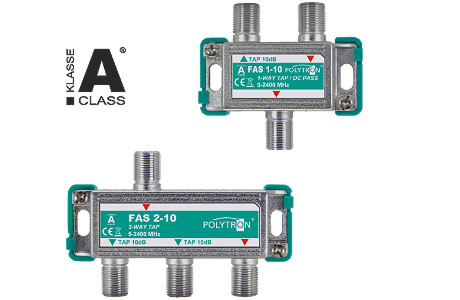

Taps 5-2400 MHz
- excellent amplitude frequency response
- high screening factor >100 dB by fully soldered housing
- EMI decoupled by capacitive separators
- plastic bracket for wall mounting included
- long hole fastener
- ground clamp 4 mm2
| Technische Daten / Technical data | ||||||||
| Typ / Type |
FAS 1-10
|
FAS 1-16
|
FAS 2-10
|
FAS 2-16
|
FAS 4-10
|
FAS 4-16
|
FAS 6-16
|
FAS 8-16
|
| Artikel-Nr. / Article no. |
3262000
|
3262100
|
3262300
|
3262400
|
3262510
|
3262520
|
3262530
|
3262540
|
| Abzweiger / Tap |
1
|
1
|
2
|
2
|
4
|
4
|
6
|
8
|
| Durchgangsdämpfung (IN-OUT) 5-862 MHz |
1,8 dB
|
1,3 dB
|
3,2 dB
|
2,4 dB
|
4,5 dB
|
2,8 dB
|
3,6 dB
|
4,8 dB
|
| Through loss (IN-OUT) 950-2400 MHz |
2,8 dB
|
1,8 dB
|
4,2 dB
|
3,2 dB
|
5,5 dB
|
4,8 dB
|
6,5 dB
|
6,5 dB
|
| Abzweigdämpfung (IN-TAP) 5-862 MHz |
10 dB
|
15 dB
|
10,5 dB
|
15 dB
|
11,5 dB
|
15 dB
|
16 dB
|
16 dB
|
| Tap loss (IN-TAP) 950-2400 MHz |
10,5 B
|
15 dB
|
11 dB
|
15,5 dB
|
13,5 dB
|
16 dB
|
19 dB
|
19 dB
|
| Entkopplung (TAP-TAP) 5-862 MHz |
/
|
/
|
32 dB
|
36 dB
|
21 dB
|
22 dB
|
22 dB
|
22 dB
|
| Isolation (TAP-TAP) 950-2400 MHz |
/
|
/
|
20 dB
|
26 dB
|
18 dB
|
20 dB
|
16 dB
|
16 dB
|
| Entkopplung (OUT-TAP) 5-862 MHz |
25 dB
|
26 dB
|
21 dB
|
23 dB
|
23 dB
|
25 dB
|
23 dB
|
23 dB
|
| Isolation (OUT-TAP) 950-2400 MHz |
23 dB
|
23 dB
|
16 dB
|
18 dB
|
18 dB
|
20 dB
|
21 dB
|
21 dB
|
| Rückflussdämpfung (IN/OUT/TAP) 5-862 MHz |
13 dB
|
13 dB
|
12 dB
|
12 dB
|
9 dB
|
12 dB
|
10 dB
|
10 dB
|
| Return loss (IN/OUT/TAP) 950-2400 MHz |
10 dB
|
10 dB
|
12 dB
|
12 dB
|
10 dB
|
12 dB
|
8 dB
|
8 dB
|

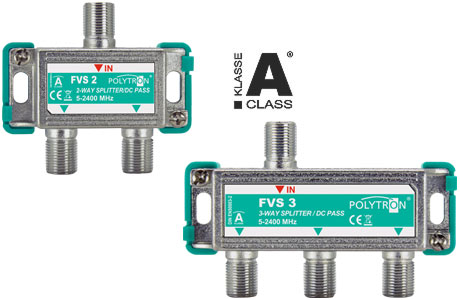

Splitters with DC pass.
