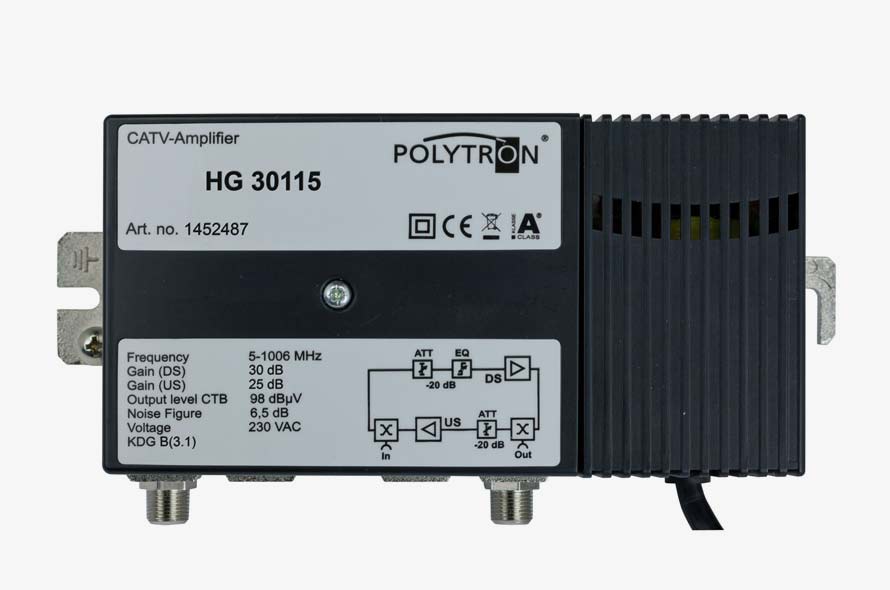

1 GHz home distribution amplifier with built-in return path, settings via potentiometer
The HG 30115 is a flexible home distribution amplifier with a frequency range up to 1 GHz in POLYTRON’s best quality. The reliable power supply and the valuable housing ensure a long lifetime.
- settings via potentiometer
- interstage equalization 3 dB fix
- built-in return path
- die-cast housing
- interruption-free setting
- Class A
- certified by German cable operator VFKD
| ⏩ | View product in webshop |
| ⏩ | Operating manual |
| Technische Daten / Specifications | ||
| Typ / Type |
HG 30115
|
|
| Artikel-Nr. / Article no. |
1452487
|
|
| Frequenzbereich / Frequency range |
85...1006 MHz
|
|
| Verstärkung / Gain |
30 dB
|
|
| Pegelsteller / Attenuator |
0...20 dB
|
|
| Entzerrer / Equalizer |
0...20 dB
|
|
| Interstage Vorentzerrung / Interstage pre equalization |
3 dB
|
|
| Rauschmaß / Noise figure |
≤ 6,5 dB
|
|
| Ausgangspegel / Output level | ||
| Cenelec 42 CTB / CSO flat |
98 dBµV
|
|
| IMA3 60 dB |
115 dBµV
|
|
| Rückkanal / return path | ||
| Rückkanalfrequenz / Return path freq. |
5...65 MHz
|
|
| Rückkanalverstärkung / Gain return path |
25 dB
|
|
| Pegelsteller / Attenuator |
0...20 dB
|
|
| Ausgangspegel / Output level max. |
IMA3 60 dB: 115 dBµV
|
|
| Spannungsversorgung/Operating voltage |
230 V~
|
|
| Leistungsaufnahme / Power consumption |
4,5 W
|
|
| Maße (BxHxT) / Dimensions (WxHxD) |
(IP 30) 174 x 80 x 47 mm
|
|
| Klassifizierung |
VFKD B(3.1)
|
|
30 dB / 115 dBµV
1 GHz home distribution amplifier with built-in return path, settings via potentiometer
The HG 30115 is a flexible home distribution amplifier with a frequency range up to 1 GHz in POLYTRON’s best quality.
The reliable power supply and the valuable housing ensure a long lifetime.
- settings via potentiometer
- interstage equalization 3 dB fix
- built-in return path
- die-cast housing
- interruption-free setting
- Class A
- certified by German cable operator VFKD
| Technische Daten / Specifications | ||
| Typ / Type |
HG 30115
|
|
| Artikel-Nr. / Article no. |
1452487
|
|
| Frequenzbereich / Frequency range |
85...1006 MHz
|
|
| Verstärkung / Gain |
30 dB
|
|
| Pegelsteller / Attenuator |
0...20 dB
|
|
| Entzerrer / Equalizer |
0...20 dB
|
|
| Interstage Vorentzerrung / Interstage pre equalization |
3 dB
|
|
| Rauschmaß / Noise figure |
≤ 6,5 dB
|
|
| Ausgangspegel / Output level | ||
| Cenelec 42 CTB / CSO flat |
98 dBµV
|
|
| IMA3 60 dB |
115 dBµV
|
|
| Rückkanal / return path | ||
| Rückkanalfrequenz / Return path freq. |
5...65 MHz
|
|
| Rückkanalverstärkung / Gain return path |
25 dB
|
|
| Pegelsteller / Attenuator |
0...20 dB
|
|
| Ausgangspegel / Output level max. |
IMA3 60 dB: 115 dBµV
|
|
| Spannungsversorgung/Operating voltage |
230 V~
|
|
| Leistungsaufnahme / Power consumption |
4,5 W
|
|
| Maße (BxHxT) / Dimensions (WxHxD) |
(IP 30) 174 x 80 x 47 mm
|
|
| Certified by German cable operator |
VFKD B(3.1)
|
|
