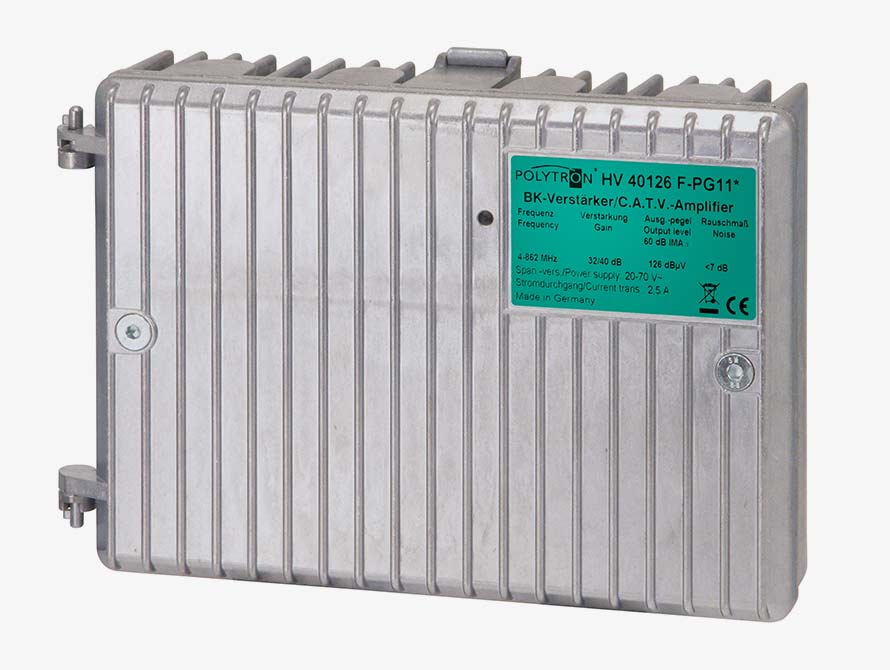

Distribution amplifier for CATV, configuration with plug-in modules
The HV-series broadband amplifiers build a full amplifier system for the expansion of full service networks.
The amplifiers are designed to complete both current and especially future tasks in such networks, as with the currently available plug-in modules a very wide range of requirements can be covered and subsequently adjusted with only a few base types without problems.
Features:
- for medium and large sized distribution systems
- active or passive return path, 30 or 65 MHz
- switchable amplification
- interstage module slot
- bi-directional test socket for measurement of input signal without interruption of operation
- 2nd output with distribution, tap-off module or as test output (-20 dB) configurable
- configuration of transit line (HV ... F) separated for input and output and settable via fuses
- robust aluminium-die-cast housing, IP 66
- wide choice of modules
| ⏩ | View HV 40126 F in our shop |
| ⏩ | View HV 40126 N in our shop |
| ⏩ | Operating manual |
| Typ / Type | HV 40126 F | HV 40126 N |
| Artikel-Nr. / Article no. | 1419010 | 1409010 |
| Frequenzbereich / Frequency range | 4-862 MHz | |
| Rückkanal / Return path | steckbar / pluggable 30/65 MHz | |
| Verstärkung / Gain | 32 / 40 dB | |
| Rauschmaß / Noise figure | ≤ 7 dB | |
| Variabler Pegelsteller / Variable attenuator | -20 dB | |
| Amplitudenfrequenzgang / Flatness | ± 0,75 dB | |
| Entzerrer-Steckplatz / Equalizer slot |
2 | |
| Ausgangspegel / Outputlevel | 60 dB / 862 MHz | |
| IMA3 (DIN 45004B) [dBµV] | 126 | |
| CTB (Cenelec 42) 60 dB flat [dBµV] | 112 | |
| CSO (Cenelec 42) 60 dB flat [dBµV] | 113 | |
| Rückflussdämpfung / Return loss | 20 dB / 40 MHz (-1,5 dB / Oktave) | |
| Endstufe / Final stage | GaAS-FET | |
| Spannungsversorgung / Operating voltage | 24-70 V~ | 180-265 V~ |
| Leistungsaufnahme / Power consumption | 10 W | |
| Stromdurchgang / Current transit | 2,5 A | / |
| Anschlüsse / Connectors | PG11 | |
| Maße (B x H x T) / Dimensions (W x H x D) | 242 x 103 x 60 mm | |
| Gewicht / Weight | 2,36 kg | |
