Line amplifiers for networks with high channel concentration, configuration with plug-in modules.

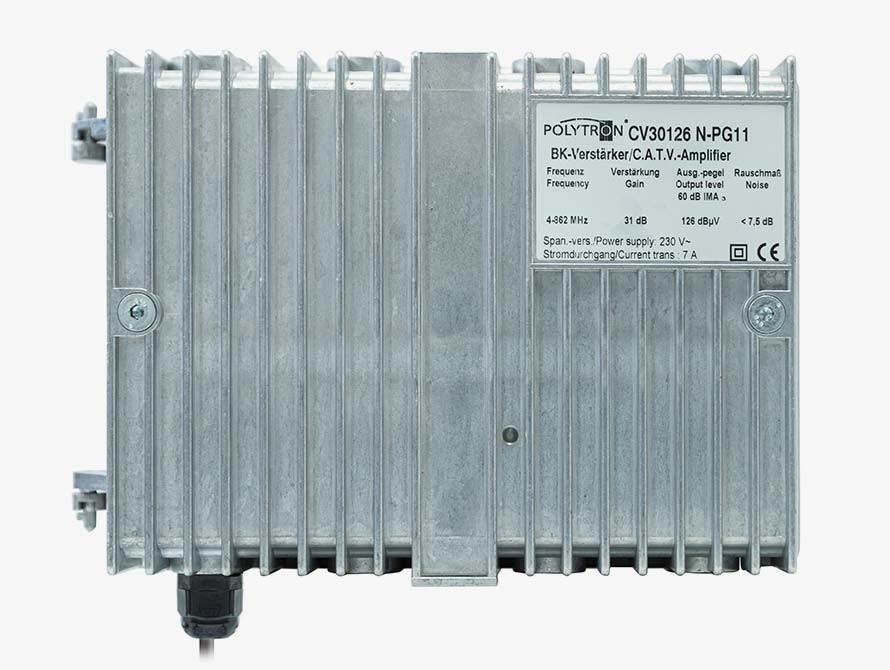

The POLYTRON CV-line-amplifier series caters for the building of larger distribution systems with a high channel concentration.
Due to the wide choice of our modules the amplifiers can be configured at customer’s option. As the forward and return path are variable, the amplifiers can be adapted to the specific situation. The CV-amplifiers are absolutely compatible for future alignment.
- active or passive return path, 30 or 65MHz configurable
- GaAs technology
- interstage module slot
- test sockets at input and output for measurements without interruption of operation
- 2nd output can be configured to tap-off or distribution output
- transit current separately configurable for inputs and outputs via fuses
- connections: PG 11
- aluminium die cast housing, IP 66
| ⏩ | View CV 30126 N in webshop |
| ⏩ | View CV 30126 F in webshop |
| ⏩ | Operating manual |
| Technische Daten / Technical data | ||
| Typ / Type |
CV 30126 N
|
CV 30126 F
|
| Artikel-Nr. / Article no. |
1428410
|
1438410
|
| Frequenzbereich / Frequency range |
4-862 MHz
|
|
| Rückkanal / Return path |
steckbar / pluggable 30/65 MHz
|
|
| Verstärkung / Gain |
30 dB
|
30 dB
|
| Rauschmaß / Noise figure |
≤ 7,5 dB
|
≤ 7,5 dB
|
| Variabler Pegelsteller / Variable attenuator |
-20 dB
|
|
| Amplitudenfrequenzgang / Flatness |
± 0,5 dB
|
|
| Entzerrer-Steckplatz / Equalizer slot |
2
|
|
| Ausgangspegel / Outputlevel 60 dB / 862 MHz | ||
| IMA3 (DIN 45004B) [dBµV] |
126
|
|
| CTB (Cenelec 42) 60 dB flat [dBµV] |
112
|
|
| CSO (Cenelec 42) 60 dB flat [dBµV] |
113
|
|
| Rückflussdämpfung / Return loss |
20 dB / 40 MHz (-1,5 dB / Oktave)
|
|
| Endstufe / Final stage |
GaAS-FET
|
|
| Spannungsversorgung / Operating voltage |
180-265 V~
|
24-70 V~
|
| Leistungsaufnahme / Power consumption |
13 W
|
|
| Stromdurchgang / Current transit |
7 A
|
|
| Maße (B x H x T) / Dimensions (W x H x D) |
242 x 163 x 90 mm
|
|
| Gewicht / Weight |
3,15 kg
|
|
Line amplifiers for networks with high channel concentration, configuration with plug-in modules.
The POLYTRON CV-line-amplifier series caters for the building of larger distribution systems with a high channel concentration.
Due to the wide choice of our modules the amplifiers can be configured at customer’s option. As the forward and return path are variable, the amplifiers can be adapted to the specific situation. The CV-amplifiers are absolutely compatible for future alignment.
- active or passive return path, 30 or 65MHz configurable
- GaAs technology
- interstage module slot
- test sockets at input and output for measurements without interruption of operation
- 2nd output can be configured to tap-off or distribution output
- transit current separately configurable for inputs and outputs via fuses
- connections: PG 11
- aluminium die cast housing, IP 66
| ⏩ | View CV 30126 N in the online shop |
| ⏩ | View CV 30126 F in the online shop |
| ⏩ | User manual |
| Technische Daten / Technical data | ||
| Typ / Type |
CV 30126 N
|
CV 30126 F
|
| Artikel-Nr. / Article no. |
1428410
|
1438410
|
| Frequenzbereich / Frequency range |
4-862 MHz
|
|
| Rückkanal / Return path |
steckbar / pluggable 30/65 MHz
|
|
| Verstärkung / Gain |
30 dB
|
30 dB
|
| Rauschmaß / Noise figure |
≤ 7,5 dB
|
≤ 7,5 dB
|
| Variabler Pegelsteller / Variable attenuator |
-20 dB
|
|
| Amplitudenfrequenzgang / Flatness |
± 0,5 dB
|
|
| Entzerrer-Steckplatz / Equalizer slot |
2
|
|
| Ausgangspegel / Outputlevel 60 dB / 862 MHz | ||
| IMA3 (DIN 45004B) [dBµV] |
126
|
|
| CTB (Cenelec 42) 60 dB flat [dBµV] |
112
|
|
| CSO (Cenelec 42) 60 dB flat [dBµV] |
113
|
|
| Rückflussdämpfung / Return loss |
20 dB / 40 MHz (-1,5 dB / Oktave)
|
|
| Endstufe / Final stage |
GaAS-FET
|
|
| Spannungsversorgung / Operating voltage |
180-265 V~
|
24-70 V~
|
| Leistungsaufnahme / Power consumption |
13 W
|
|
| Stromdurchgang / Current transit |
7 A
|
|
| Maße (B x H x T) / Dimensions (W x H x D) |
242 x 163 x 90 mm
|
|
| Gewicht / Weight |
3,15 kg
|
|
Please look here for suitable plug-in modules.
