Der HDI 2 C01 unterstützt 2x IP (MPTS / SPTS) Eingänge und 2 QAM-Träger Ausgänge.

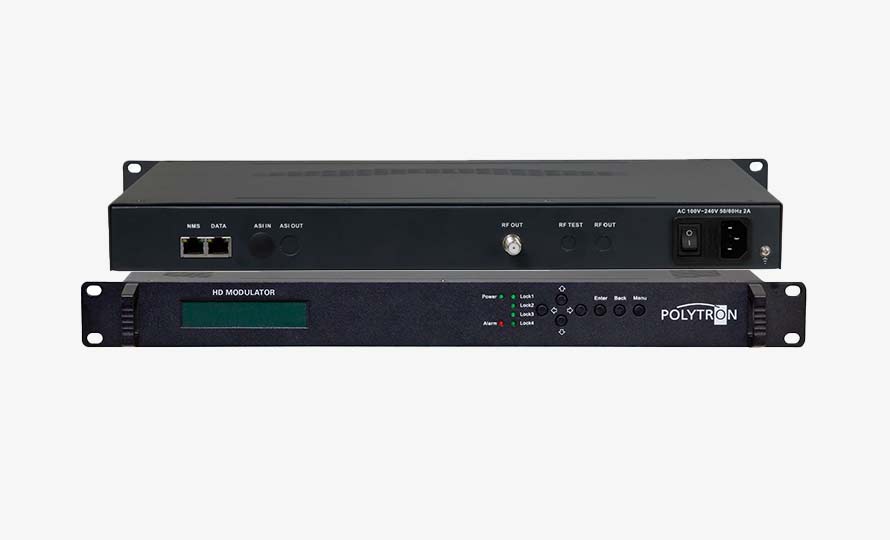

The HDI 2-1 IP QAM modulator is a high-performance modulator that receives IPTV transport streams coming over IP from encoders, multiplexers, DVB gateways, scramblers, etc.
The TS data stream is simultaneously RS encoded and QAM modulated. The HDI 2 C01 can be used for broadcasting, interactive services, information aggregation, and other broadband applications.
- Full compliance with EN300429/ITU-T J.83A/B/C (DVB-C), GB/T170 standards
- Five constellation modes: 16QAM, 32QAM, 64QAM, 128QAM, and 256QAM
- 2 channel IP input (MPTS / SPTS) via UDP
- Large buffer memory for burst mode
- Intelligent zero packet deletion, automatic TS refill and PCR correction
- VCT (Virtual Channel Table) support
- Simultaneously supports PID filtering, reassignment, and PSI/SI adjustment
- Effective real-time bit rate monitoring
- 2 output carriers, frequency range 30–1000 MHz, 1 kHz steps
- Operation via LCD and keyboard as well as Internet browser
| ⏩ | View product in our shop |
| ⏩ | Operating manual |
| Technische Daten / Specifications | |||
| Typ / Type |
HDI 2-1 IP
|
||
| Artikel-Nr. / Article no. |
5741701
|
||
| Eingang / Input |
2 channel IP (MPTS/SPTS) input over UDP (Unicast/Multicast) (100M Port)
|
||
| Re-multiplex |
PID re-mapping
PCR accurate adjusting Automatic generating PSI/SI table |
||
| Modulation | |||
| QAM channels |
2
|
||
| Standard |
EN300 429/ITU-T J.83A/B/C, GB/T170
|
||
| Symbol rate |
5,0...9,0 Msps, 1 ksps stepping
|
||
|
J.83A
|
J.83B
|
J.83C
|
|
| Constellation |
16/32/64/128/256 QAM
|
64/256 QAM
|
64/256 QAM
|
| FEC |
RS (204, 188)
|
||
| RF Ausgang / RF output | |||
| Anschlüsse / Connectors |
F Type, 75 O impedance
|
||
| RF range |
30...1000 MHz, 1 kHz stepping
|
||
| Output attenuation |
-30 dBm...-10 dBm, 0.5 dB Stepping
|
||
| System |
LCD/Keyboard operating and web-based NMS support
Ethernet software upgrading |
||
| Betriebstemperatur / Temperature |
0...45 °C (Operation) ; -20...80 °C (Storage)
|
||
| Stromversorgung / Power supply |
AC 100...240 V ±10%, 50/60 Hz
|
||
| Stromverbrauch / Power consumption |
22 W
|
||
| Maße / Dimensions (W*D*H) |
482 mm × 300 mm × 44 mm
|
||
| Gewicht / Weight |
2.3 kg
|
||
