DVB-S(2) / DVB-T(2) / DVB-C into DVB-C Conversion of 4 terrestrial channels

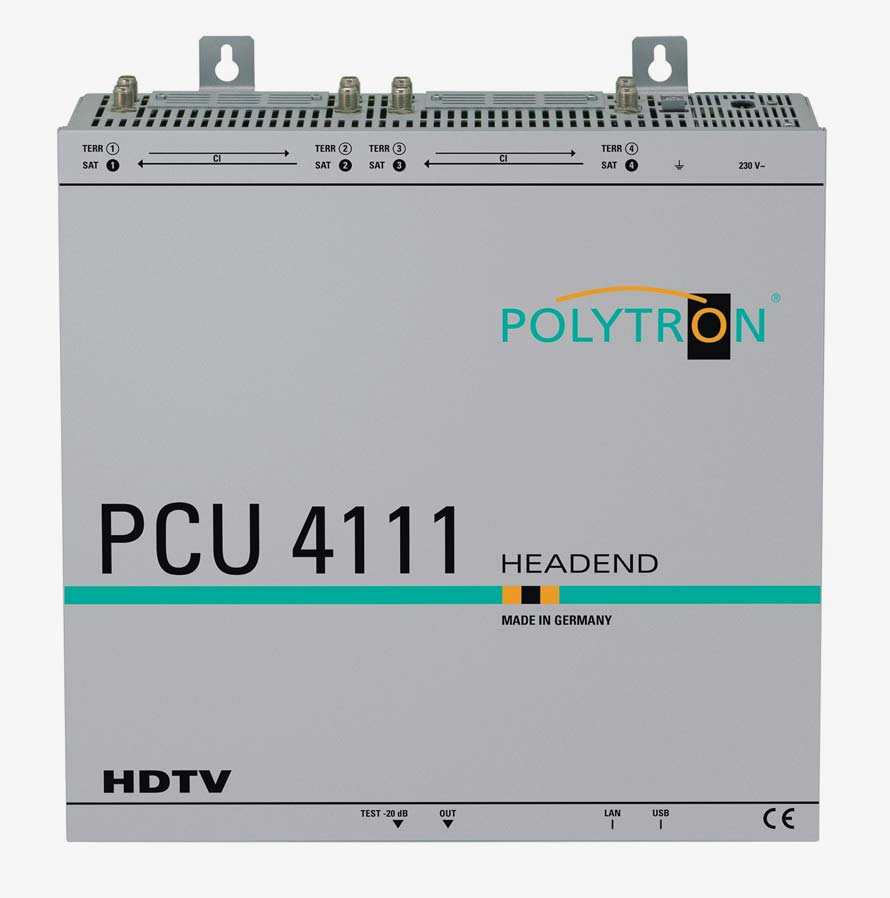

The triple tuner reception headend PCU 4111 converts the signals of four terrestrial or cable network channels into DVB-C channels.
The four inputs are each provided with a CI interface for decoding encrypted signals. The dual modulators can split the selected channels to two output channels in order to avoid bandwidth problems. The headend can be programmed fastly and easily via the USB interface.
Features like LCN, NIT, TSP and LAN administration complete the practical functionality.
The high quality components and the “Made in Germany” in-house development and production enable you to build up reliable and durable reception systems with POLYTRON's PCU 4111.
- Triple tuner: Selectable input signals
- 4x CI slots
- MPEG 2 and MPEG 4 compatible
- Switchable output signal
- Freely selectable output channels between 112-862 MHz
- Adjacent channel compatible
- Attenuation 0-12 dB
- Built-in LNB power supply
- Temperature-controlled fan
- Dual modulator function
- Transponder content can be deleted TSP
- Logical Channel Numbering LCN
- Network Information Table NIT compatible
- Pre-programmed
- Built-in LAN control
- Made in Germany
| ⏩ | View product in our shop |
| ⏩ | Operating manual |
| Typ / Type |
PCU 4111
|
| Artikel-Nr. / Article no. |
5552150
|
| Eingänge / Inputs |
4
|
| CI-Schnittstellen / CI slots |
4
|
| Eingangspegel / Input level |
50...80 dBµV
|
| Demodulator | |
| DVB-S/S2 | |
| SR DVB-S / QPSK |
1...45 MS/s
|
| SR DVB-S2 / QPSK |
1...45 MS/s
|
| SR DVB-S2 / 8PSK |
1...45 MS/s
|
| Modulation |
8PSK / QPSK
|
| CR DVB-S / QPSK |
1/4, 1/3, 2/5, 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
|
| CR DVB-S2 / 8PSK |
3/5, 2/3, 3/4, 5/6, 8/9, 9/10
|
| Roll off |
0.35, 0.25, 0.20
|
| DVB-T | |
| Modulation |
QPSK, 16QAM, 64QAM
|
| FFT |
2K, 8K
|
| Bandbreite / Channel bandwidth |
7, 8 MHz
|
| Code rate |
1/2, 2/3, 3/4, 5/6, 7/8
|
| Guard interval |
1/4, 1/8, 1/16, 1/32
|
| DVB-T2 | |
| Modulation |
QPSK, 16QAM, 64QAM, 256QAM
|
| FFT |
1K, 2K, 4K, 8K, 16K, 32K
|
| Bandbreite / Channel bandwidth |
7, 8 MHz
|
| Code rate |
1/2, 3/5, 2/3, 3/4, 4/5, 5/6
|
| Guard interval |
1/4, 5/32, 1/8, 5/64, 1/16, 1/32, 1/64, 1/128
|
| DVB-C | |
| Modulation |
16QAM, 32QAM, 64QAM, 128QAM, 256QAM
|
| Symbol rate |
7,2 MS/s
|
| Bandbreite / Channel bandwidth |
6, 7, 8 MHz
|
| Ausgangsmodulation im Auslieferungszustand |
DVB-C
|
| Output modulation ex works |
umprogrammierbar auf / programmable to DVB-T
|
| Ausgangskanäle / Output channels |
4 + 4
|
| Frequenzbereich / Frequency range |
112...862 MHz
|
| Signal constellation |
16, 32, 64, 128, 256 QAM
|
| Symbol rate |
1...7,2 MS/s
|
| FEC |
/
|
| Bandbreite / Bandwidth |
7 / 8 MHz
|
| Ausgangspegel / Output level |
90 dBµV
|
| Regelbare Dämpfung je Kanal / Channel attenuation |
0...12 dB
|
| MER |
≥ 40 dB
|
| Leistungsaufnahme / Power consumption |
max. 35 W
|
| Spannungsversorgung / Operating voltage |
180...265 V, 50/60 Hz
|
| Maße (B x H x T) / Dimensions (W x H x D) |
331 x 328 x 103 mm
|
