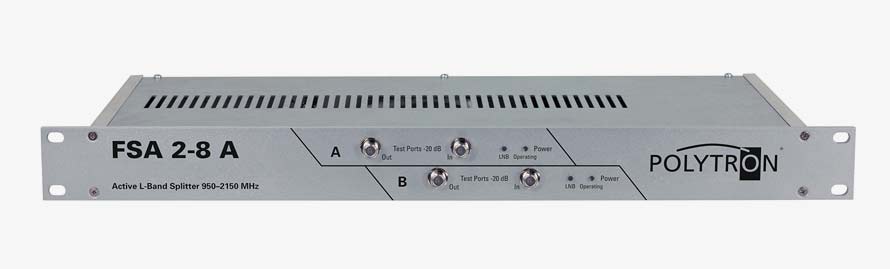

FSA 2-8 A SAT distributor
Active SAT/L-band distributor with 2x RF inputs and 2x8 RF outputs in the frequency range from 950 to 2150 MHz. Two fed satellite signals are available loss-free at each of the 8 outputs, with the distribution attenuation being balanced.
- Switchable LNB power supply of 15 V.
- Loss-free distribution
- 19" rack mounting.
| ⏩ | View product in our shop |
| ⏩ | Operating manual |
| Technische Daten / Specifications | |
| Frequenzbereich / Frequency range |
950…2150MHz
|
| Eingänge / Inputs F-Type |
2
|
| Ausgänge / Outputs F-Type |
2x8
|
| Outputs DC blocked |
Ja / Yes
|
| Impedanz / Impedance input, output |
75 Ohm
|
| Eingangspegel / Input level (at IMR 35dB) |
max. 85 dBµV
|
| Verstärkung / Gain |
0 ± 2,5 dB
|
| Ausgangspegel / Output level |
-25 ... -65 dBm
|
| Eingang Rückflussdämpfung / Input return loss |
min. 11 dB
|
| Ausgang Rückflussdämpfung / Output return loss |
min. 11 dB (all ports)
|
| LNB Spannungsversorgung / LNB supply voltage |
15 V (on/off switchable)
|
| LNB Stromaufnahme / LNB supply current |
max. 250 mA
|
| Betriebsspannung / Power supply |
85 V to 265 VAC
|
| Stromaufnahme / Power consumption |
4 W/ 9 VA plus LNB power
|
| Temperaturbereich / Operating temperature |
0 °C to 50 °C
|
| Gehäuse / Housing |
19” (483 mm), 1 RU (44 mm), 240 mm
|
| Gewicht / Weight |
3,1kg
|
