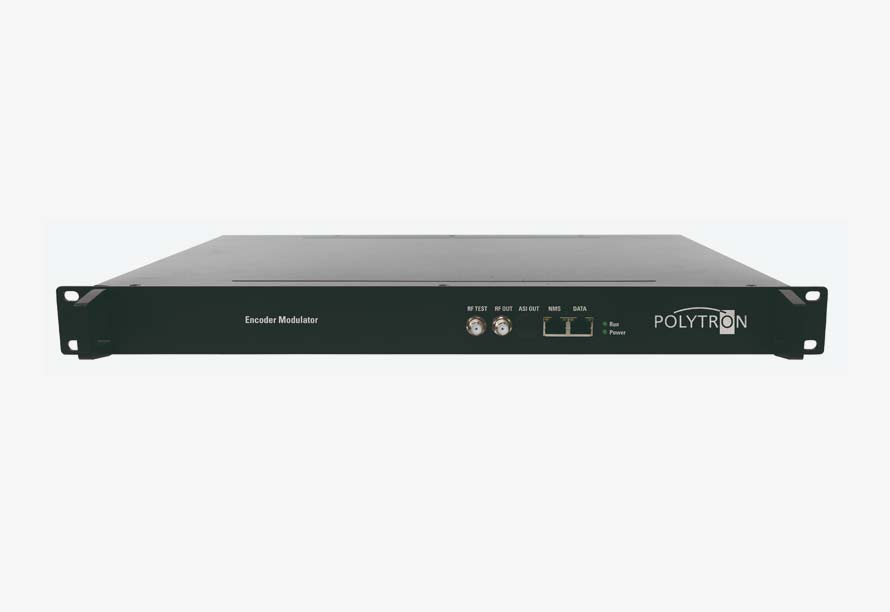

8x HDMI in DVB-C encoder/modulator
HDM 8 C is a professional high integration modulator which includes encoding, multiplexing and modulating in one device. It supports 8 HDMI inputs and DVB-C RF out with 4 adjacent channels and 4 MPTS outputs as mirror out of the 4 modulation channels via DATA (GE) port.
This full function device is ideal for small CATV head end systems, and it’s a smart choice for e.g. hotel TV systems, entertainment systems in sports bars, hospitals or apartments.
- Output video format MPEG-4 AVC/H.264
- Audio encoding: MPEG1 L II, LC-AAC, HE-AAC, AC3 passthrough
- HF output: DVB-C (30-960 MHz)
- Parallel IPTV stream (MPTS)
- Excellent signal quality (MER ≥ 42 dB)
- High-quality components
- Designed for continuous operation
- Easy programming via web browser
- Quick installation
- For 19" rack mounting
| ⏩ | View product in our shop |
| ⏩ | Operating manual |
| Technische Daten / Technical data | |
| Typ / Type |
HDM-8 C
|
| Artikel-Nr. / Article no. |
5741700
|
| Encoder Video | |
| Videoformat / Video encoding |
MPEG4 AVC/H.264
|
| Eingang / Input |
8x HDMI
|
| Auflösung / Resolution |
Eingang / Input
1920×1080_60P, 1920×1080_60i, 1920×1080_50P, 1920×1080_50i, 1280×720_60P, 1280×720_50P, 720×576_50i,720×480_60i, Ausgang / Output 1920×1080_30P, 1920×1080_25P, 1280×720_30P, 1280×720_25P, 720×576_25P,720×480_30P, |
| Bit rate | CBR, VBR |
| GOP |
25…50
|
| Encoder Audio | |
| Audioformat / Audio Format |
MPEG1 Layer II, LC-AAC, HE-AAC, AC3 pass through
|
| Samplingrate / Sampling Rate |
48 kHz
|
| Bit Rate |
MPEG 1 Layer II: 48/56/64/80/96/112/128/160/192/224/256/320/384 kbps LC-AAC: 48/56/64/80/96/112/128/160/192/224/256/320/384 kbps
HE-AAC: 48/56/64/80/96/112/128 kbps |
| Symbolrate / Symbol rate |
5...9 Msps
|
| Modulator | |
| Ausgangskanäle / Output Channels Standard |
4 (Nachbarkanal / adjacent channel)
|
| Konstellation / Constellation | J.83A (DVB-C), J.83B wählbar / selectable |
| Bandbreite / Bandwidth | 16 / 32 / 64 / 128 / 256 QAM J.83 A: 8 MHz / J.83B 6 MHz |
| Symbolrate / Symbol Rate | 5…7 MSps |
| Ausgangsfrequenz / Output Frequency | 30…960 MHz (1 kHz-Schritte / steps) |
| Ausgangspegel / Output Level | -25…-1 dBm (85…105 dBμV) (0,1 dB-Schritte / steps) |
| MER | >40 dB |
| System | |
| Ausgänge / Outputs | 1x HF (F) / 1x RF (F), IP (RJ45) |
| Fernsteuerung / Remote Control | Web-Interface per Ethernet IP |
| NMS Interface/Stream Port | RJ45, 1000 Mbps (4 MPTS) |
| Betriebsparameter / Operating Parameters | |
| Stromversorgung / Power Supply | 100…240 VAC ±10 % 50/60 Hz |
| Betriebstemperatur / Operating Temp | 0…45 °C |
| Abmessungen / Dimensions | 482 x 328 x 44 mm |
Available only in MENA region.
