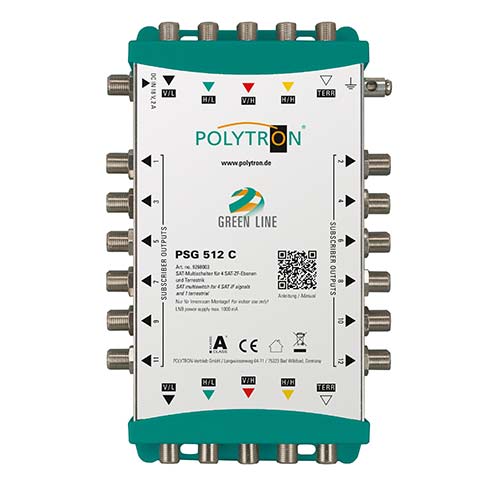

Cascade multiswitch with 4 SAT and 1 terrestrial input
Cascade multiswitch for distributing 4 SAT IF levels and terrestrial signals.
- 4 SAT and 1 terrestrial input
- High energy efficiency
- Switching criteria 13/18 V, 0/22 kHz
- High return loss
- High decoupling of the levels
- A power supply unit for LNB power supply must be connected within the cascade
| ⏩ | View product on our shop |
| ⏩ | Operating manual |
| Technische Daten / Specifications | ||
| Typ / Type |
PSG 512 C II
|
|
| Artikel-Nr. / Article no. |
9268055
|
|
| Eingänge / Inputs |
4 SAT, 1 TERR
|
|
| Ausgänge / Outputs |
12
|
|
| Frequenzbereich / Frequency range |
47...862 MHz / 950...2150 MHz
|
|
| Durchgangsdämpfung / Through loss | TERR 47...862 MHz |
4 dB
|
| Durchgangsdämpfung / Through loss | SAT 950...2150 MHz |
6 dB
|
| Abzweigdämpfung / Tap loss | TERR. 47...862 MHz |
+3 dB
|
| Abzweigdämpfung / Tap loss | SAT 950...2150 MHz |
0 dB
|
| Schaltkriterien / Switching commands |
13 V / 18 V / 0/22 kHz
|
|
| Entkopplung / Isolation | Horz. / Vert. |
> 28 dB
|
| Entkopplung / Isolation | SAT / TERR |
> 30 dB
|
| Ausgangspegel max. / Output level max. * |
SAT: 95 dBµV ; TERR: 87 dBµV
|
|
| Stromaufnahme je Receiver / Power consumption per receiver |
55 mA
|
|
| LNB-Stromversorgung / LNB supply |
max. 1700 mA
|
|
| Betriebstemperatur / Operation temperature |
-20...+50 °C
|
|
| Maße (B x H x T) / Dimensions (W x H x D) | [mm] |
188 x 115 x 36
|
