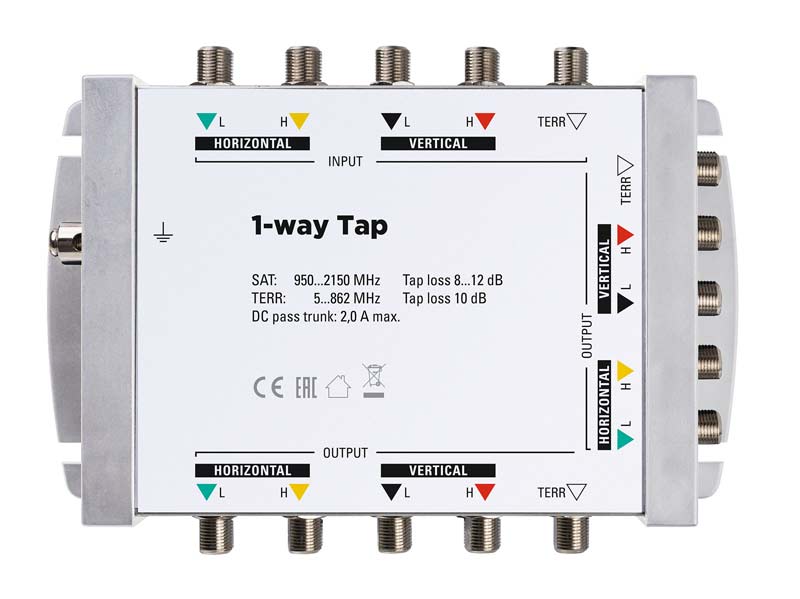

POLYTRON PSG 510-10 TAP tap-off connector

4 SAT and 1 terrestrial input

The PSG 510-10 TAP single splitter is used to distribute 4 SAT levels and one terrestrial signal and has a decoupling attenuation of 10 dB. The DC pass-through, maximum 2 A, is used for the LNB power supply.

POLYTRON Abzweiger PASG 510-10 TAP

4 SAT and 1 terrestrial input
SAT tap loss: 8 ... 12 dB
TERR tap loss: 10 dB
High return loss
High decoupling of the levels
Terminate trunk ends with DC-blocked terminating resistors 75 Ohm!

View product in our shop

Operating manual

Typ / Type	PSG 510-10 TAP
Artikel-Nr. / Article no.	9267654
Anwendung / Application	Abzweiger
Frequenzbereich Frequency range	SAT: 950...2150 MHz Terr.: 5...862 MHz
Eingänge / Inputs	4 SAT, 1 TERR
Ausgänge / outputs	Stamm: 4 SAT, 1 TERR TAP: 4 SAT, 1 TERR
Durchgangsdämpfung Through loss	SAT: 1,8 dB Terr.: 1,5 dB
Abzweigdämpfung Tap loss	SAT: 8...12 dB Terr.: 10 dB
Entkopplung Terr./SAT / Isolation Terr./SAT	40 dB typ.
Entkopplung H/V Isolation H/V	35 dB typ.
DC Durchgang DC pass OUT - IN	2 A max.
Abmessungen (B x H x T) / Dimensions (W x H x D)	183 x 125 x 54 mm
Temperaturbereich / Temperature range	-20...+55 °C
