Zum Anschluss von Multischalter-Systemen. Quattro or quad LNBs can be connected.

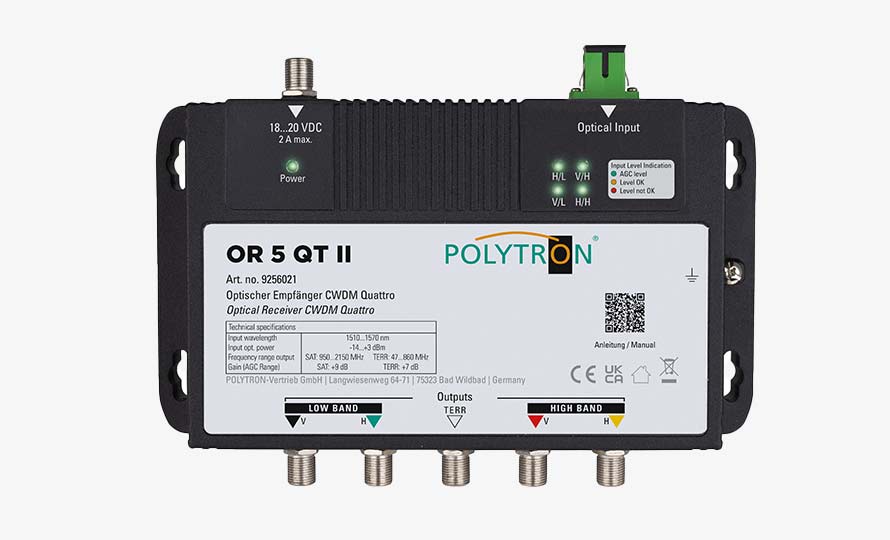

The OR 5 QT II and OR 4 S II optical receivers are used to reconvert the optical signal into the SAT and terrestrial signals in the RF range.
The OR 5 QT II provides these signals at four outputs with fixed SAT polarization levels and one terrestrial output. The OR 4 S II provides these signals at four switchable universal outputs for the direct connection of receivers or TV sets.
- Quattro or quad LNBs can be connectedOR 5 QT II for connecting multi-switch systems
- OR 4 S II for direct connection of receivers/TV sets
- High return loss
- High linearity
- built-in CWDM
- built-in AGC
- LED status indicators.
| ⏩ | View product in our shop |
| ⏩ | Operating manual |
| Technische Daten / Specifications | ||
| Typ / TypeTyp / Type | OR 5 QT II | |
| Artikel-Nr. / Article no. |
9256021
|
|
| Opt. Eingang / Opt. Input |
1
|
|
| Wellenlänge / Wavelength |
1510...1570 nm (CWDM)
|
|
| Eingangsleistung / Input power |
-14...+3 dBm
-7...+2 dBm (AGC)
|
|
| Rückflussdämpfung / Return loss |
≥45 dB
|
|
| Konnektor / Connector |
SC/APC
|
|
| Fiber-Typ / Fiber type |
Singlemode
|
|
| Ausgang / Output |
4 SAT, 1 TERR
|
|
| Frequenzbereich / Frequency range | TERR |
47 ... 862 MHz
|
| SAT |
950...2150 MHz
|
|
| Verstärkung zum Eingangspegel des OT 5-5 CWDM / Gain to the input level of the OT 5-5 CWDM | TERR |
7 dB (AGC)
|
| SAT | 9dB (AGC) | |
| Rückflussdämpfung / Return loss | TERR |
≥12 dB
|
| SAT |
≥10 dB
|
|
| Welligkeit | TERR |
± 0,75 dB
|
| SAT |
± 1,5 dB
|
|
| Konnektor / Connector |
F-Buchse / F socket
|
|
| Betriebsparameter / Operating parameters | ||
| Stromversorgung / Power supply |
18 VDC, 2000 mA
|
|
| Leistungsaufnahme / Power consumption |
< 6 W
|
|
| Netzteilanschluss / Power supply connection |
F-Buchse / F socket
|
|
| Betriebstemperatur / Operating temperature |
-25...+55 °C
|
|
| Maße (B x H x T) |
197 x 142 x 47 mm
|
|
