Plastic bracket for wall mounting included in delivery

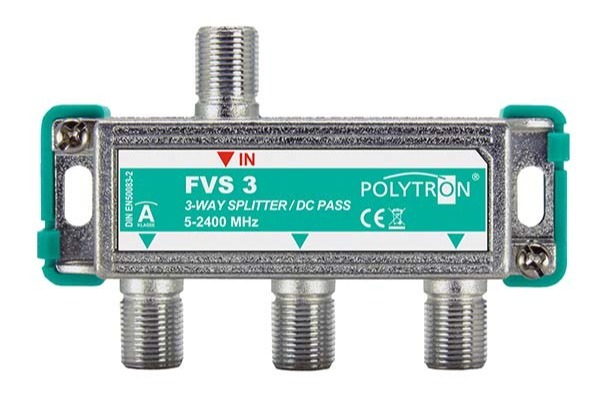

5-2400 MHz 3-way splitter with DC pass-through
Key Features:
- Excellent amplitude frequency response
- High shielding factor >100 dB thanks to fully soldered housing
- Hum-decoupled by isolating capacitors
- Plastic bracket for wall mounting included in delivery
- Slotted hole mounting
- Ground terminal 4 mm²
| ⏩ | View product in our shop |
| Technische Daten / Technical data | |
| Typ / Type |
FVS 3
|
| Artikel-Nr. / Article no. | 3061600 |
| Verteiler / splitter | 3-fach / 3-way |
| Durchgangsdämpfung 5-862 MHz | 7,5 dB |
| Through loss (IN-OUT) 950-2400 MHz | 10,5 dB |
| Entkopplung / Isolation (OUT-OUT) 5-2400 MHz | 20 dB |
| Rückflussdämpfung / Return loss (IN/OUT) 5-862 MHz | 11 dB |
| Wir behalten uns das Recht auf Datenänderungen bei Fehlern vor. / We reserve the right to amend data in case of errors. | |
